Create Data Product for Finance Domain

Let us now design the finance domain product.

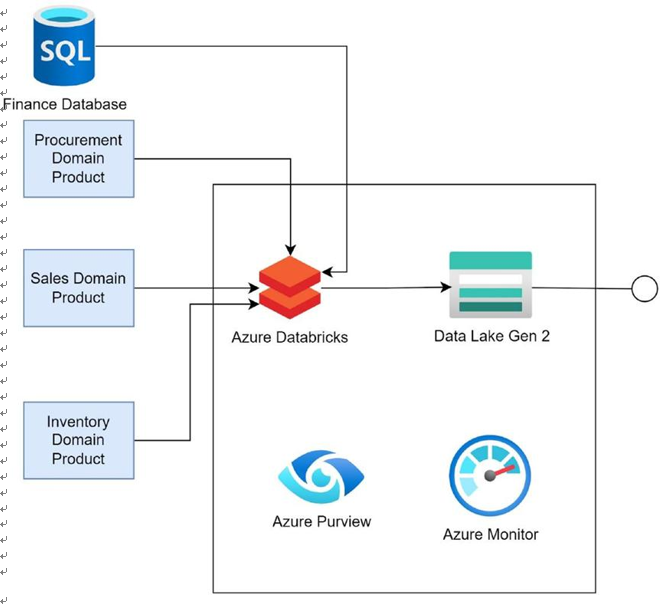

Figure 4-7.  Finance domain product

Figure 4-7 depicts the finance domain product, which consumes data from the inventory, sales, and procurement domain products. The volume of data is huge. Azure Databricks is used to manage the huge amounts of data being ingested. Spark pipelines transform the data and put it in an Azure Data Lake Gen2, which exposes the data to other domain products for consumption. Operational logs and metrics for Synapse are stored in Azure Monitor. Azure Monitor can be used to diagnose the run-time issues in the product. Azure Purview scans data capture and stores the data lineage, data schema, and other metadata information that can help in discovering the data.

Create Self-Serve Data Platform

The self-serve data platform consists of the following components, which give data producers and consumers a self-service experience:

•    Data mesh experience plane

•    Data product experience plane

•    Infrastructure plane

Figure 4-8 depicts the Azure services that can be used to build the self-serve data platform.

Figure 4-8.  Self-serve platform components

Data Mesh Experience Plane

The data mesh experience plane helps customers to discover the data products, explore metadata, see relationships among the data, and so on. The data mesh plane is used by the data governance team to ensure data compliance and best practices by giving them a way to audit and explore the data. Azure Purview can scan the data products and pull the data information from the products, like metadata, data schemas, data lineage, etc.

Data Product Experience Plane

The data product experience plane helps the data producers to add, modify, and delete data in the domain products. Azure Functions can be used in data products to allow data producers to add, modify, or delete the data in the domain product. The Purview catalog in the domain product will expose the data schema definitions and metadata, allowing the data producers to work with the data in the data domain.

Infrastructure Plane

The infrastructure plane helps in self-provisioning of the data domain infrastructure. You can use Azure Resource Manager APIs exposed through Azure Functions to create and destroy infrastructure for the data domain products.

Federated Governance

Azure Policies can be used to bring in federated governance. Data landing zones can be created using Azure Policies that can control and govern API access and activities for the data producers and consumers. Azure Functions and Azure Resource Manager APIs can also be used for governance purposes. Azure Monitor alerts can be used for generating governance alerts and notifications.
